Description:

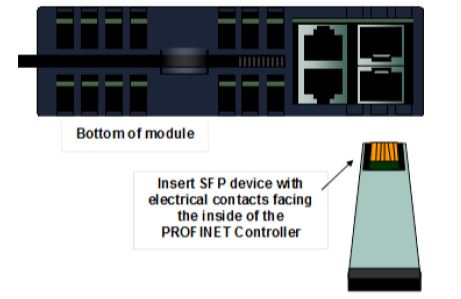

SFP (Small Form-Factor Pluggable) devices can be installed in Port 3 and Port 4 of the RX3i PROFINET Controller IC695PNC001 and PROFINET Scanner IC695PNS001.
Emerson Part Numbers:
For further details and specifications, refer to the PACSystems RX3i RSTi-EP PROFINET IO-Controller User Manual (GFK-2571) . Refer to GFK-2571Q chart on bottom of page 37 Chapter 2 (SFP Modules for Ethernet Ports)
SFP (Small Form-Factor Pluggable) devices can be installed in Port 3 and Port 4 of the RX3i PROFINET Controller IC695PNC001 and PROFINET Scanner IC695PNS001.
Emerson Part Numbers:
Catalog Number | Description |
IC695SPC100 | RX3i 10/100/1000Base-T copper SFP |
IC695SPF002 | RX3i 100Base-FX (fiber 2 km) SFP (Multi-mode fiber - MMF) |
IC695SPF550 | RX3i 1000Base-SX (fiber 550 m) SFP (MMF) |
IC695SPF010 | RX3i 1000Base-LX (fiber 10 km) SFP (Single-mode fiber - SMF) |
For further details and specifications, refer to the PACSystems RX3i RSTi-EP PROFINET IO-Controller User Manual (GFK-2571) . Refer to GFK-2571Q chart on bottom of page 37 Chapter 2 (SFP Modules for Ethernet Ports)
