Error 8036 During Target Validation of a PLC Project

PAC Machine Edition - duplicate addresses and validate PLC target results in Error 8036.
10/12/2025
10/17/2025

Description

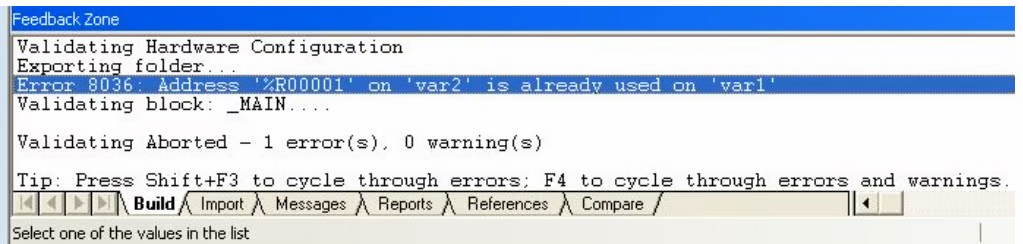

Validate PLC target results in Error 8036.



Resolution

PME Duplicate Address setting is set to Prevent hence will flag this condition as an error when more than one variable name is referenced to the same reference address.

User can change this setting from prevent to a warning or ignore.

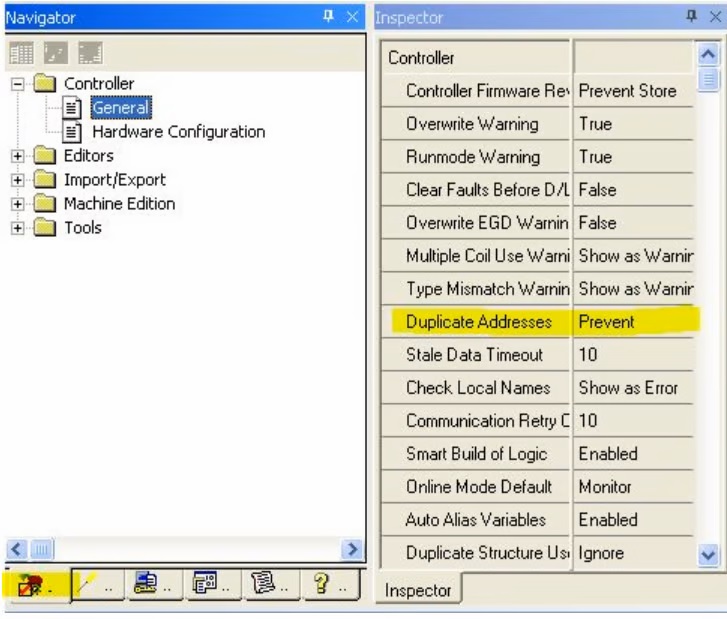

Go into Navigator left most tab to get into PME settings. Then Controller Folder > General > Duplicate address is set for Prevent

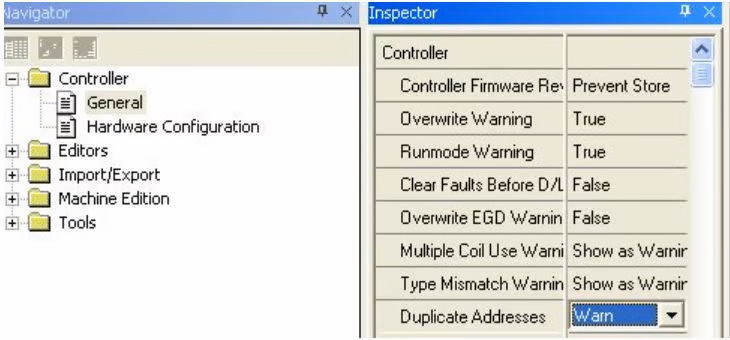

Change this to warn or ignore. Then validate the target and the error becomes a warning.
